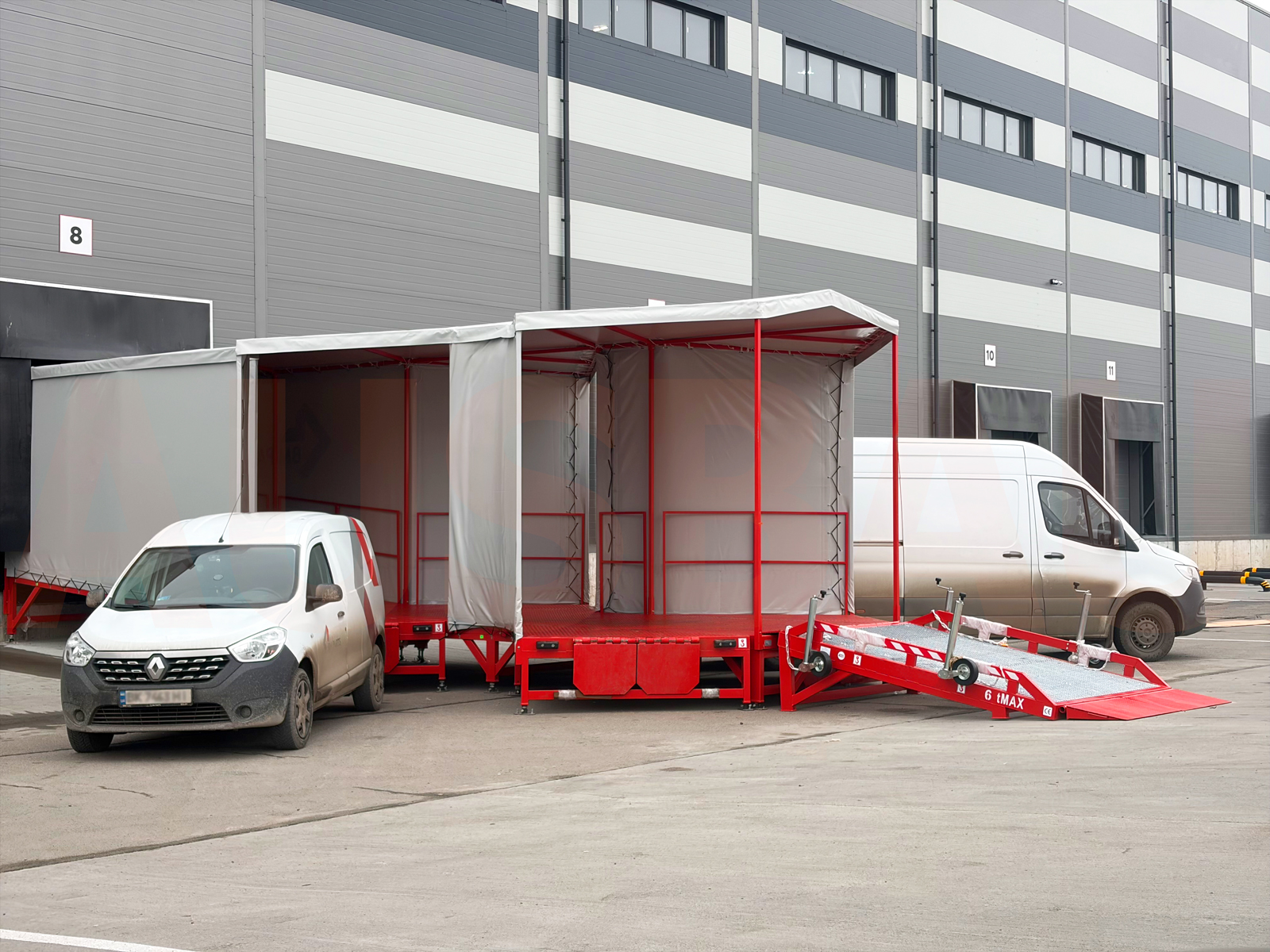

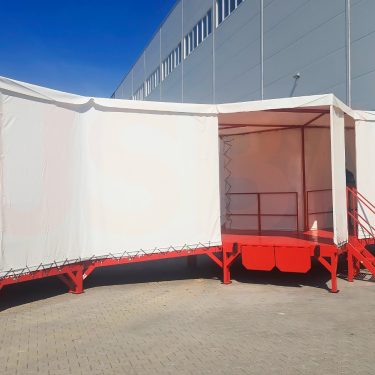

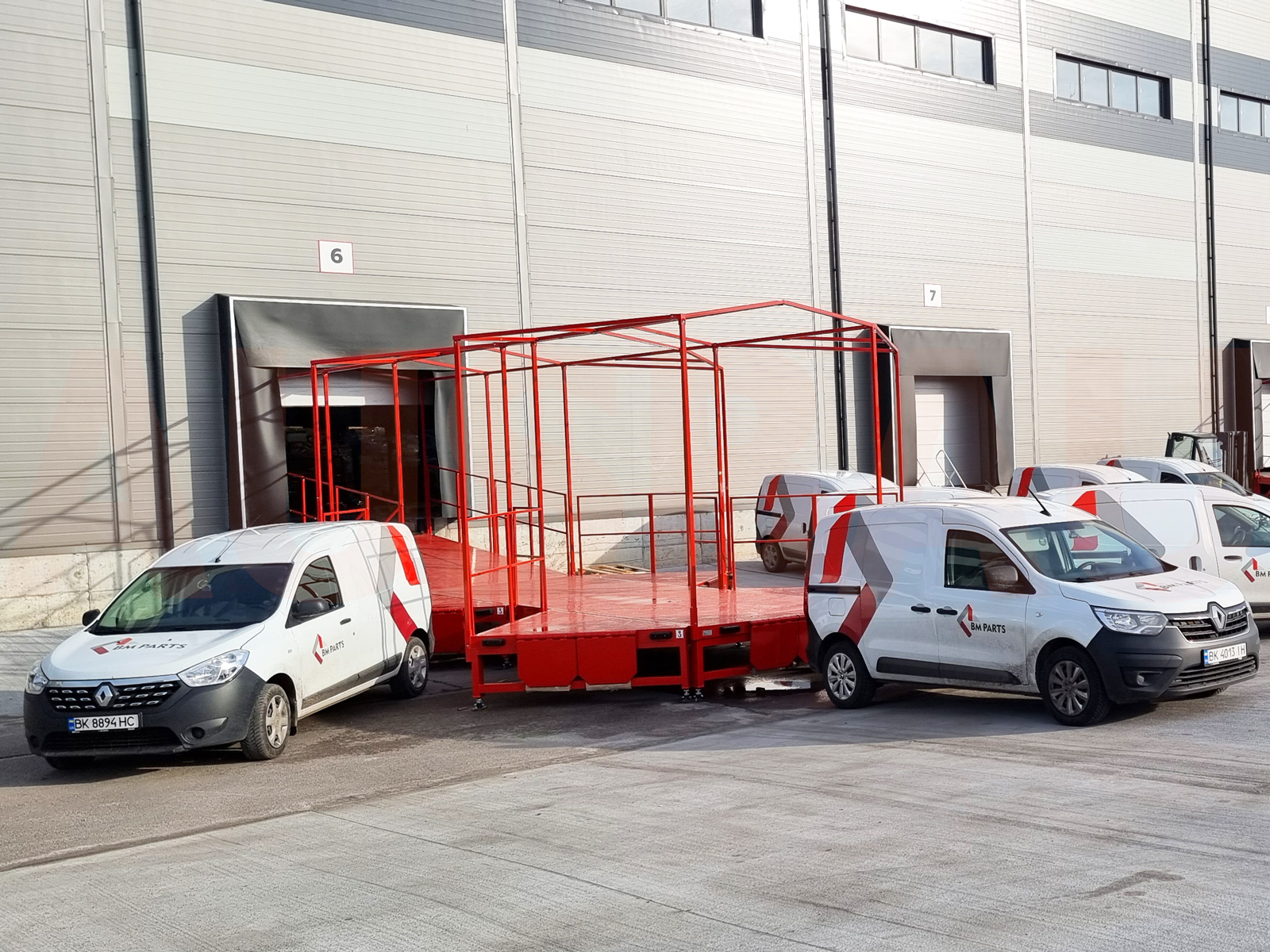

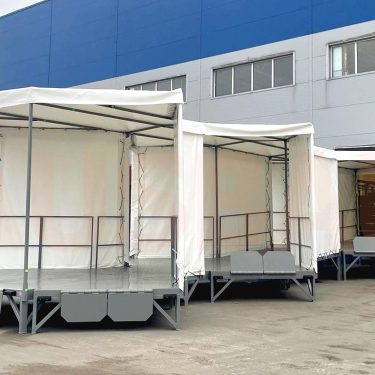

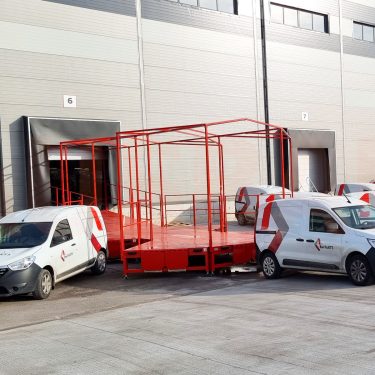

A modular loading complex for light commercial vehicles – a versatile solution for warehouses, logistics centres and distribution centres. Modular loading and unloading platform – a structure used for service 5 or more commercial vehicles simultaneously (vans, minibuses, service and courier vehicles). Loading platforms are widely used in logistics operations where fast vehicle turnaround and efficient warehouse space utilisation are essential.
CE Standard.

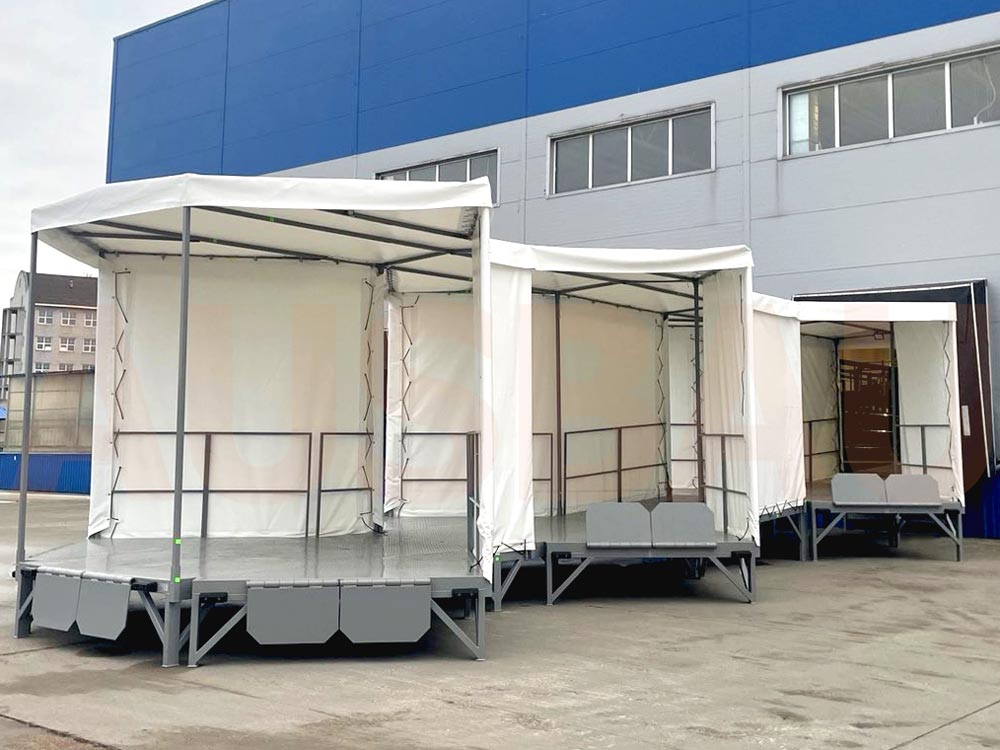

Each element of the complex consists of a separate loading platform, forming a single system with 5-7 or more loading and unloading points. This solution enables the simultaneous servicing of more than 7 light commercial vehicles and significantly speeds up logistics processes.
| Number of platforms in the complex, pcs | up to 5 – 7 |
| Platform load capacity, kg | 3000 / 6000 |
| Total length of the complex, mm | 11800 / 16000 |
| Total width of platform, mm | 2120 / 2320 |
| Usable width of platform, mm | 2000 / 2200 |
| Total width of the side platform, mm | 2120 |
| Connecting lip length, mm | 500 |
| Working height, mm | 700 / 600 |

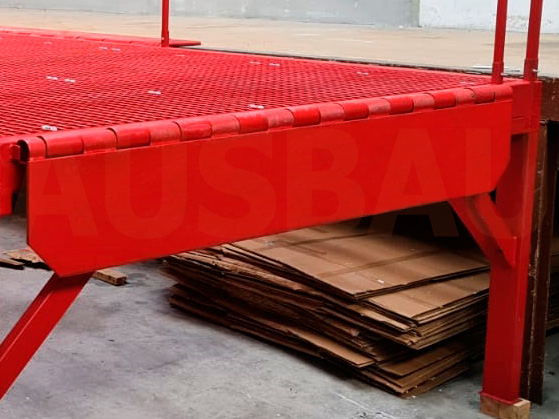

| Driving surface | zinc-coated anti-slip grating / chequer plate |
| Warranty | 18 months |

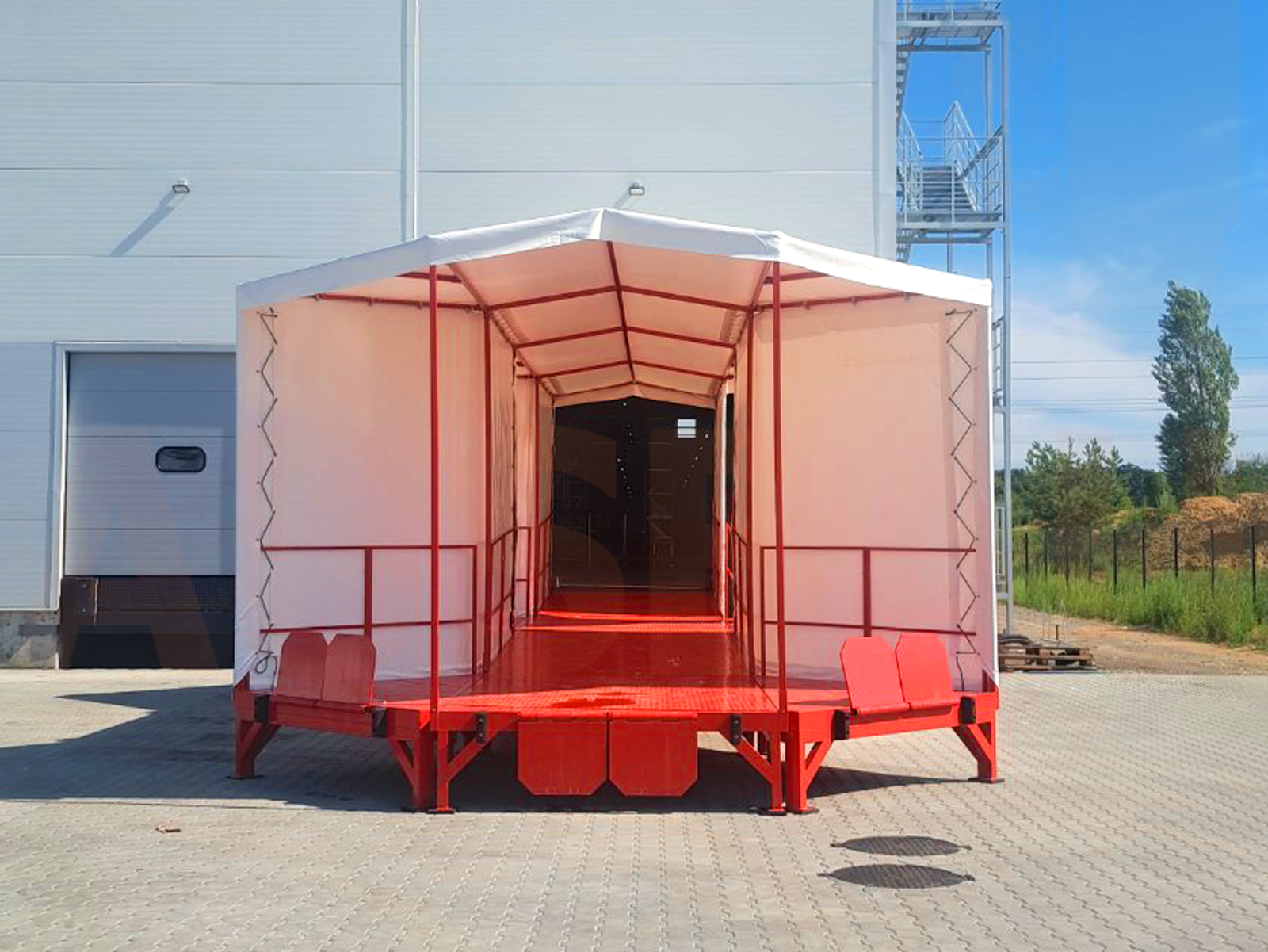

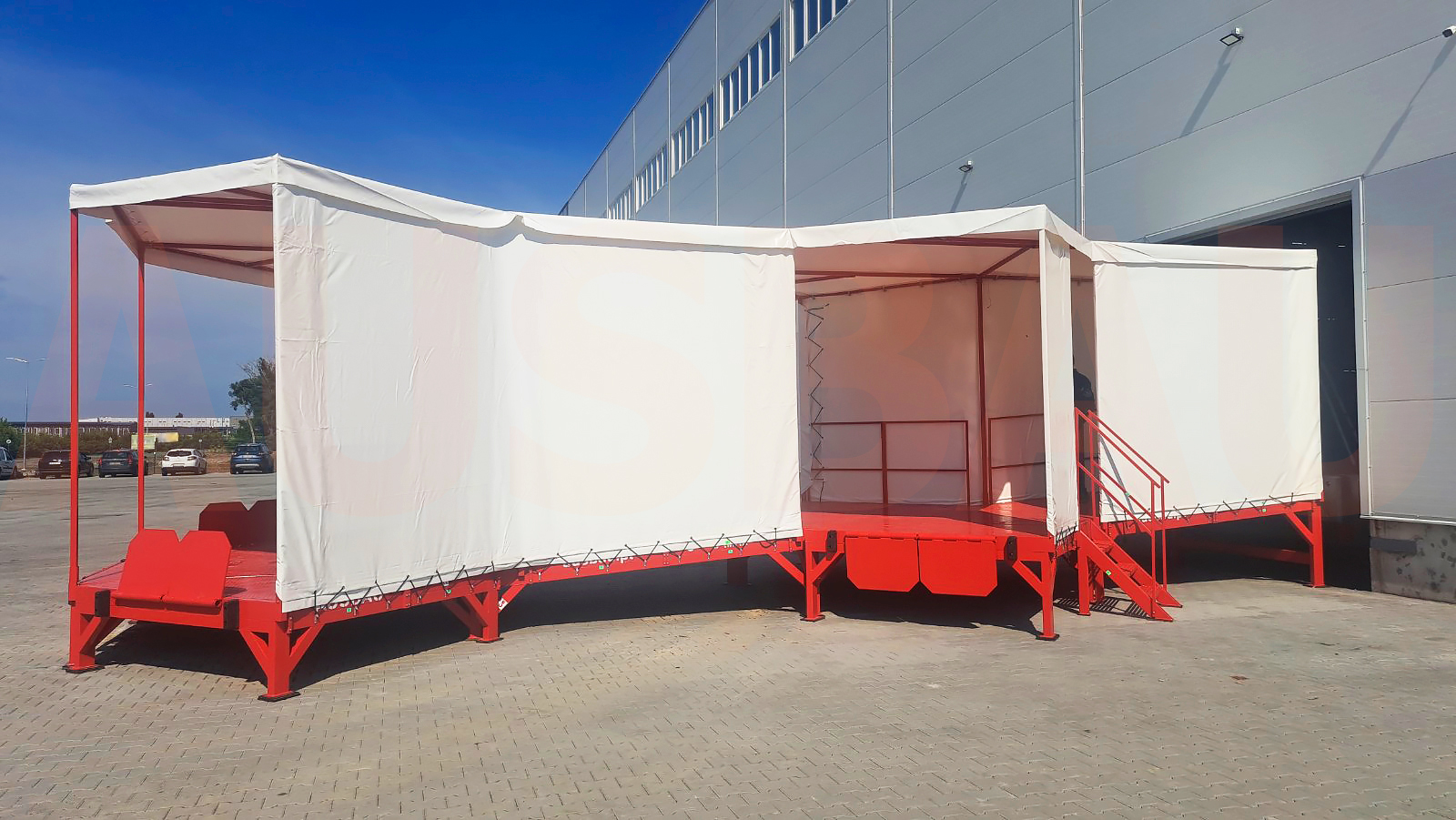

The loading platform complex forms a single modular loading dock for simultaneous handling of multiple commercial vehicles. The system combines several loading zones into one logistics structure, ensuring continuous loading and unloading operations without queues or downtime. The loading platforms are suitable for forklift trucks, manual and electric pallet trucks, and can also be used as temporary storage or sorting areas during peak operational periods.
Applications – warehouses, logistics centres, courier terminals, distribution platforms, commercial vehicle operations, cross-docking facilities, logistics and industrial operations.
