Ramp for vans

This is special designed truck ramp for loading/unloading commercial vehicles at standard dock gates of modern warehouses.

Our team studied tens of specifications for hundreds of models of commercial vehicles, we analyzed carefully reports about top sales models on European market, our engineers modelled different executions in order to find best choice for different vehicles and here is the result – AUSBAU-VR.

TECHNICAL CHARACTERISTICS

Load of ramp, kg	5000 / 8000
Total length of the ramp, mm	11000 / 12000 / 13000
The total width of the ramp, mm	2450 / 6100
Width of riding surface, mm	2350-6000
Length of sloping part, mm	5000 / 6000 / 11000 / 13000
Working height, mm	500-700
Height of the safety railings, mm	180
Number of folding races, pcs	2
Angle of slope of ramp	2.42 / 5.74 / 6.32
Material	S235
Carriageway surface	grating
Components	set of chains on the ramp – 2 pcs
Warranty	18 months

MODELS AND DIMENSIONS

#	Model	Load, kg	N	H	NH	A	F	T	a°
Standard models
1	VR8-N6000-H7000xF2350-A600 *	8000	6000	7000	13000	600	2350	2450	5.74
2	VR8-N5000-H7000xF2350-A550 **	8000	5000	7000	12000	550	2350	2450	6.32
3	VR5-N6000-H5000xF2350-A650 ***	5000	6000	5000	11000	650	2350	2450	6.22
Custom models – no level-offs (H)
4	VR8-N13000-H0xF2350-A550	8000	13000	0	13000	550	2350	2450	2.42
5	VR5-N11000-H0xF2350-A650	5000	11000	0	11000	650	2350	2450	2.87
Custom models — extra wide, for two dock gates ****
6	VR8-N6000-H7000xF6000-A600	8000	6000	7000	13000	600	6000	6100	5.74
7	VR8-N5000-H7000xF6000-A550	8000	5000	7000	12000	550	6000	6100	6.32
8	VR5-N6000-H5000xF6000-A650	5000	6000	5000	11000	650	6000	6100	6.22

* best choice – for all types of commercial vehicles, small and medium.
** for medium commercial vehicles, like Ford Transit, Mercedes Sprinter, Iveco Daily, VW Crafter, Fiat Ducato and similar.
*** for small commercial vehicles like Renault Traffic, VW Transporter, Ford Transit Custom, Peugeot Expert and similar.
**** shipped devided into 3 parts.

LEVELLING RAMP OPERATING PRINCIPLE

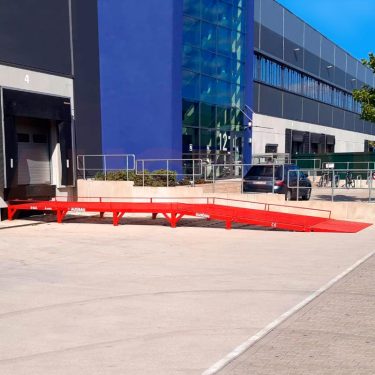

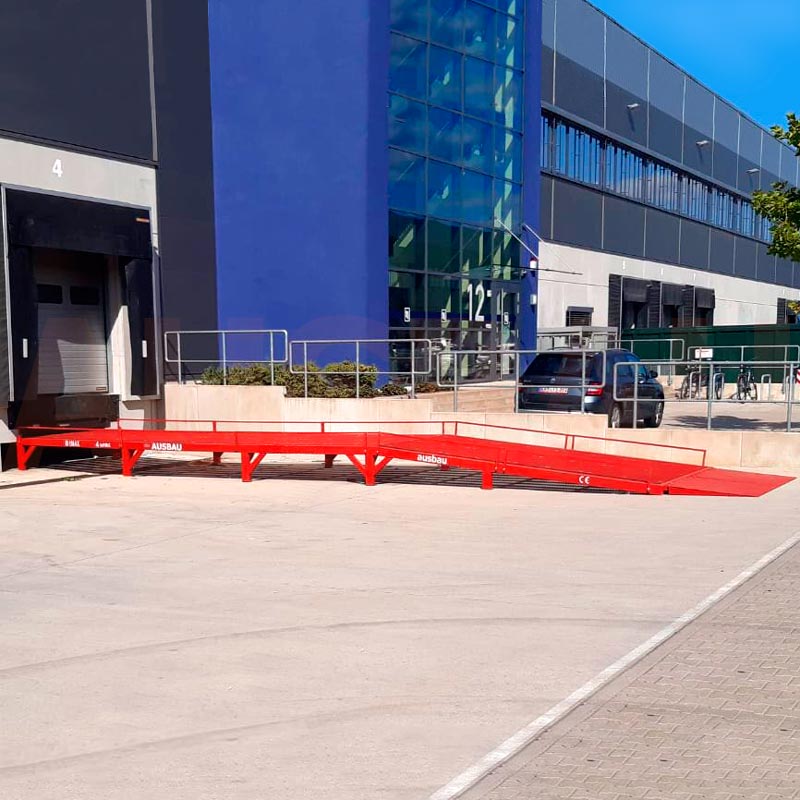

AUSBAU-VR helps to eliminate difference in heights of commercial vehicles (500-700 mm) and height of dock gates, dedicated for big semi-trailers (1100-1200 mm ). Van arrives to the dock gate and after riding on the AUSBAU-VR ramp, it becomes higher, and its loading height (distance from ground to van floor) becomes similar to dock gate height, which allows to make loading/unloading just from warehouse.

Standard set includes steel gratings as riding surface, protective 180 mm safety railings preventing falling van from ramp, kit for fixing ramp to ground and warehouse wall. Besides that customer can order special optional features, which will upgrade his ramp, improve usability and ergonomics of usage, safety of work.

Additional options

Wheels chocks, 2 pairs – additional protection of truck from moving (blocks rear wheels) when loading/unloading process is going.

Set of 4 pcs wheel risers for 100 mm – allows to increase additionally height of the van if it is too small to reach dock gate level.

Mechanical spring bridge – makes connection between dock gate and truck floor.

Handrails on the ramp – safe walking on the ramp for pedestrians with 1100 mm handrails. Mounts instead of 180 mm fences.

OPT-LD - cтълба за водача на товарача, която ви позволява да слезете от рампата към земята.

Stairs for truck driver – easy to get out from van to ground safely.

Wheels set on the ramp – allows to move ramp from one dock gate to another using forklift.

Žebřík OPT-LDPP s plošinou pro řidiče vysokozdvižného vozíku.

Stairs + platform – it allows truck driver to step first of all at platform and then go downstairs using ladder (different vans have different lengths, meaning different positions of drivers door).
