Loading dock ramp

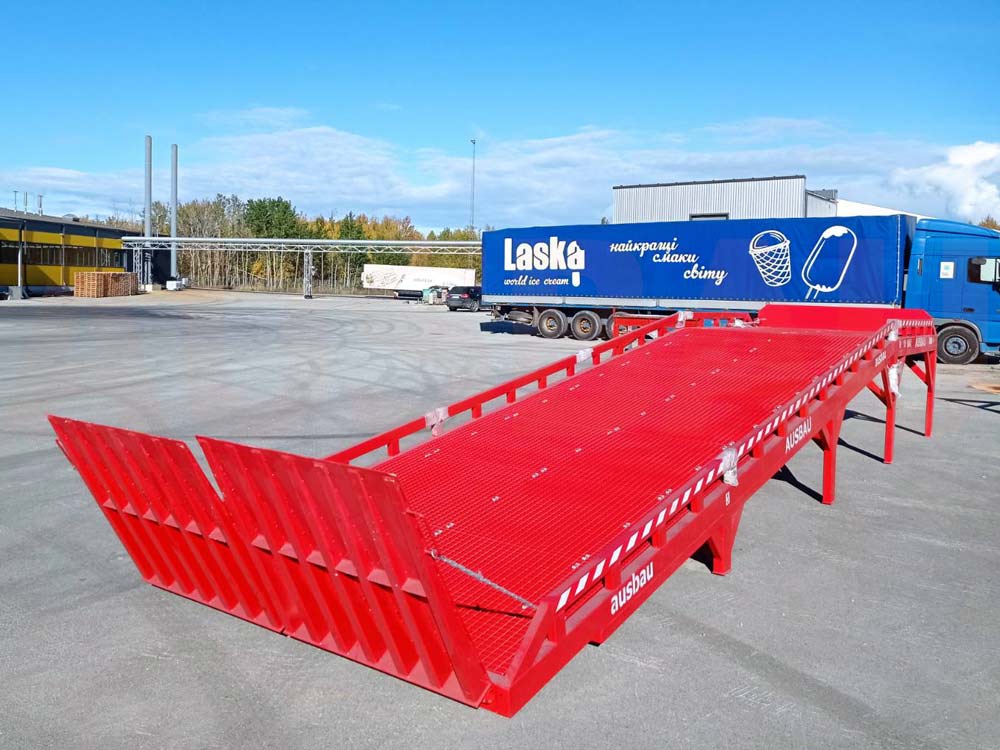

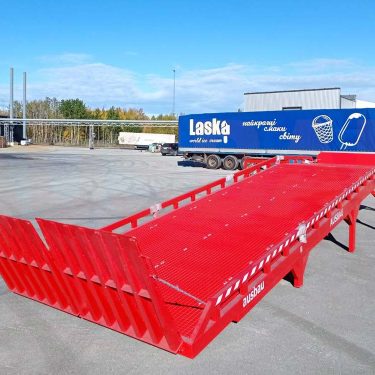

Fixed loading dock ramps AUSBAU-STB with horizontal platform for goods loading and unloading are the essential warehouse equipment as often the access roads to the warehouse are rather inconvenient for the forklifts. Such loading ramp will significantly speed up the loading / unloading time.

AUSBAU offers 6 standard AUSBAU-STB ramp models with different load capacity, the length of the inclined part, platform width, and the angle of inclination. We are also ready to make a special designed ramp/ It will be an individual solution perfectly suited to the customer’s purpose.

CE Standard.

Technical characteristics
Load capacity, kg 6000 / 8000 / 10000
Total length, mm 10800 / 12800
Total width, mm 2120
Usable width, mm 2000
Length of inclined part, mm 8000 / 10000
Connecting lip length, mm 300
Working height, mm 1100/1200
Height of the safety railings, mm 180
Number of folding bridges, pcs 2
Slope angle 6,89 / 8,63
Material S235
Driving surface zinc-coated anti-skid grating
Components set of chains on the ramp – 2 pcs
Warranty 18 months
Models and dimensions

AUSBAU-STB

# Model Load, kg N H C NHC F T A
1 STB6-8025 6000 8000 2500 300 10800 2000 2120 1100/1200 8.63
2 STB6-10025 6000 10000 2500 300 12800 2000 2120 1100/1200 6.89
3 STB8-8025 8000 8000 2500 300 10800 2000 2120 1100/1200 8.63
4 STB8-10025 8000 10000 2500 300 12800 2000 2120 1100/1200 6.89
5 STB10-8025 10000 8000 2500 300 10800 2000 2120 1100/1200 8.63
6 STB10-10025 10000 10000 2500 300 12800 2000 2120 1100/1200 6.89
Movable dock ramp operating principle

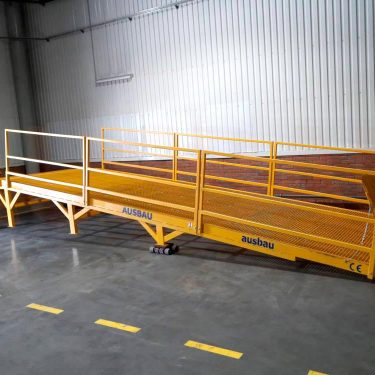

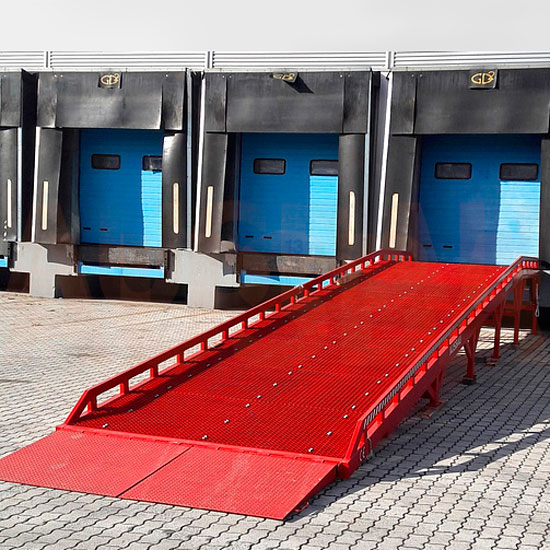

Fixed loading dock ramps with horizontal platform are installed in front of the dock gate or on an open level surface. They provide a non-stop and free access from ground level to the warehouse or truck.

Horizontal platform of the AUSBAU stationary loading ramps allow the forklift driver to level off its position before arriving at or leaving the warehouse or truck. Thus, the forks will be parallel to the ground and the driver will get a full view.

AUSBAU stationary loading dock ramps are securely fixed with bolts (to the warehouse) or chains (to the warehouse or truck). The connecting bridge is made of ultrastrong steel with a lentil pattern surface coating. It acts as a matching link between the ramp and the object.

AUSBAU-TC
OPT-TC - tent over the roadway of the ramp.
AUSBAU-HA
OPT-HA - telescopic legs.
AUSBAU-BR
OPT-BR - hydraulicl folding bridge.
AUSBAU-WGD
OPT-WGD - wheels guides for a truck 1780х500х308 mm, pair.
AUSBAU-WL
OPT-WL - pair of wheels for local small moving.
AUSBAU-WCH
OPT-WCH - Wheels chocks. Additional protection of truck from moving (blocks rear wheels) when loading/unloading process is going.
AUSBAU-HR
OPT-HR - mountable safety railings 1100mm high.
AUSBAU-3SW
OPT-3SW - three-sided unloading ramp.
LD

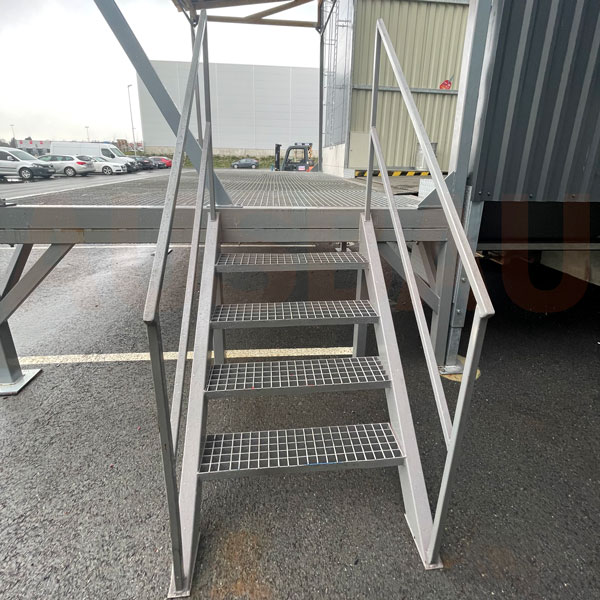

OPT-LD - ladder to the platform allows the driver to step first onto the platform, and then go down the stairs.
AUSBAU-LDP
OPT-LDP -Ladder with the platform for pedestrians (forklift driver)
AUSBAU-CLR
OPT-CLR - choosing a different color (standard color is red).
