Mobile ramp for containers

Name: Mobile ramp for containers
Brand: AUSBAU
Rating: 4,8 (32 reviews)

Mobile ramps for containers by AUSBAU — a flexible solution for loading and unloading trucks or containers with a forklift, even without any loading infrastructure at the warehouse.

CE Standard.

We are often requested about unloading/loading small containers from a long platform. In such cases, using a standard ramp is not convenient . Therefore, we have developed special loading ramps for projects where containers are placed in the center of the platform or on container truck frames, where a forklift can not pass.

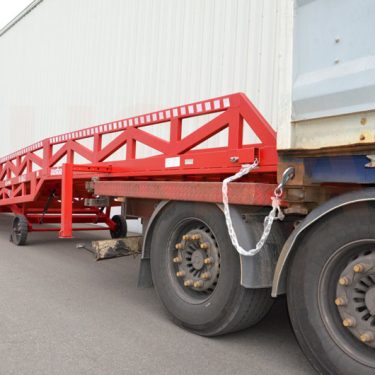

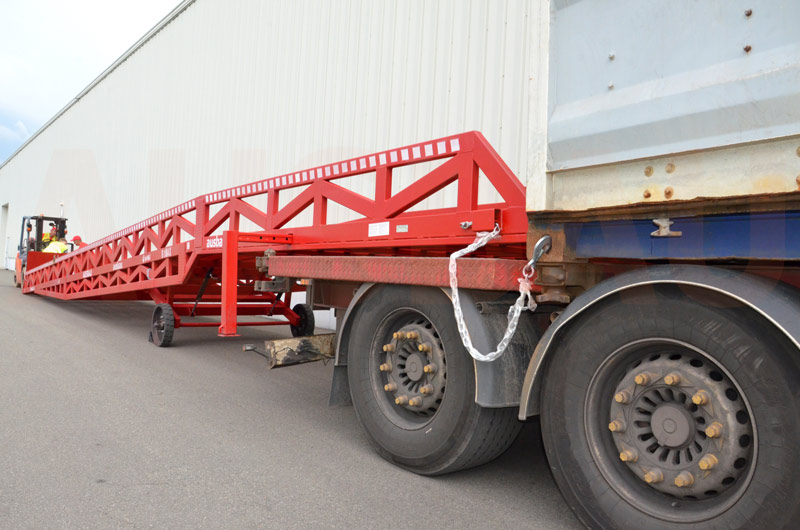

The main feature of this ramp for unloading containers is the extended horizontal part and the absence of lower supports, which allows you to drive on the platform and reach the container, even if it is far from the edge. It is perfect for use with universal long platforms designed to carry both 40-foot (12 meters) and 20-foot (6 meters) containers. The mobile ramp for containers simplifies loading and unloading operations with loads of up to 30 tons in limited warehouse spaces.

Such container ramps have a number of technical features that help increase the efficiency of logistics operations.

Technical characteristics

Load on ramp, kg	up to 30 000
Total length, mm	8500 – 13000
Total width, mm	2130 – 2950
Usable width, mm	2000 – 2820
Length of inclined part, mm	8000 – 12000
Length of horizontal part, mm	1000 – 4000
Connecting lip length, mm	300
Connecting lip width, mm	2000 – 2800
Min. working height, mm	900
Max. working height, mm	1550 / 1750
Height of side protection, mm	180
Number of folding bridges, pcs	2
Number of wheels, pcs	2 / 4
Wheels	solid rubber / pneumatic / other
Material	S235
Riding surface	zinc-coated anti-slip grating / chequer plate / other
Complete set	rubber wheel chocks – 2 pcs, tow pole – 1 pc, set of securing chains, manual hydraulic pump with handle – 1 pc.
Warranty	18 months

It should be noted that for containers placed closer to the platform’s edge, we offer a wide range of standard AUSBAU mobile ramp models. These solutions are more universal and the price of a ramp is significantly lower.

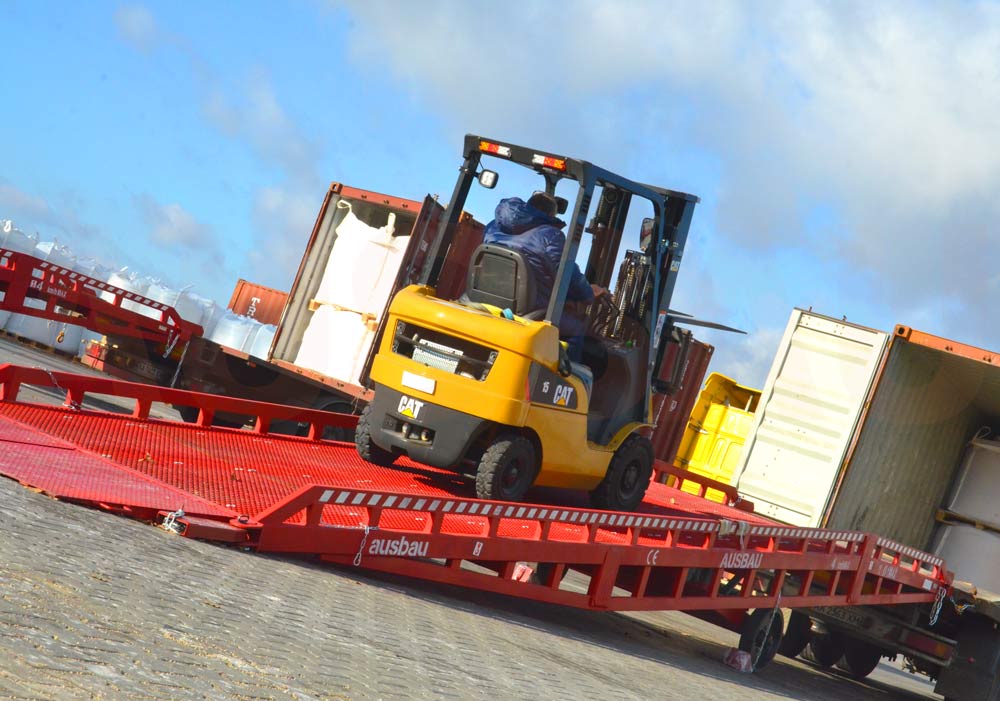

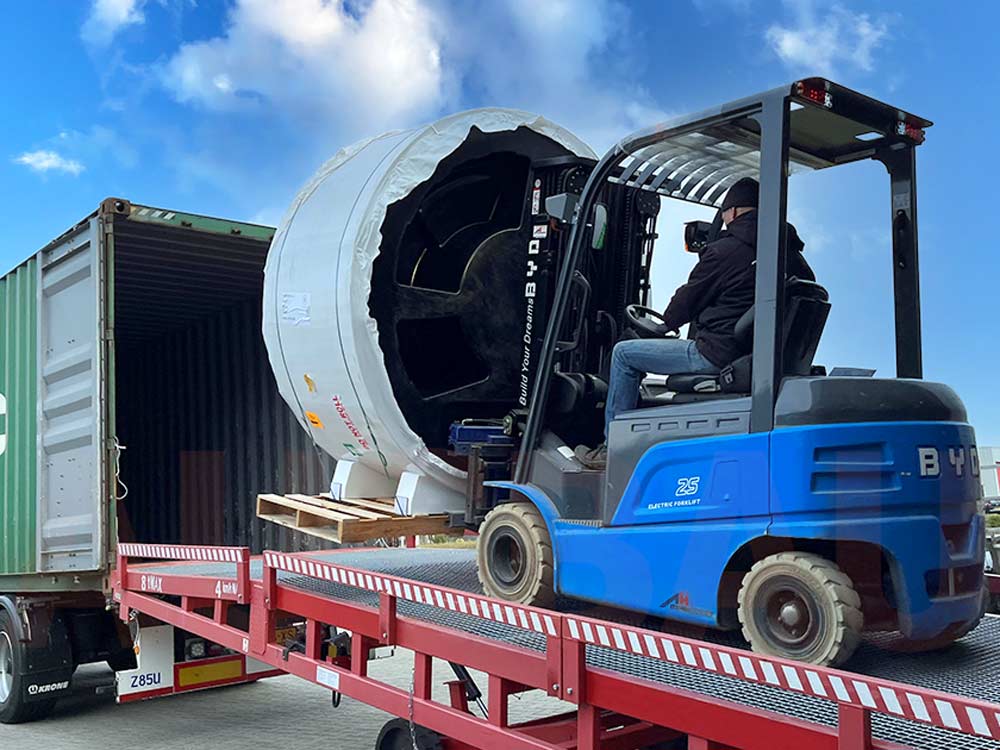

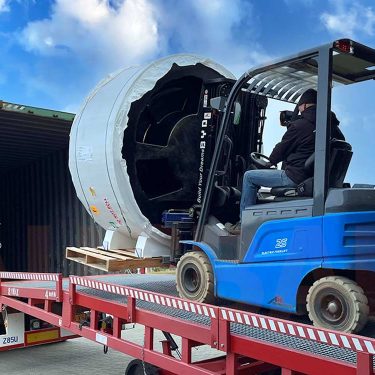

The loading ramp for containers allows quick handling of goods between the ground and the shipping container, compensating for the height difference. The forklift can easily drive up the ramp into the container, maximizing the speed of loading and unloading process.

Moreover, a range of additional options for mobile ramps improve both efficiency and safety during operation.

Additional options

OPT-EHP - electric hydraulic station instead of manual.

OPT-EHMP - electric hydraulic station and manual pump.

OPT-4WL - additional pair of wheels.

OPT-2SL3SW - three-sided unloading mobile ramp. Supplied with safety legs.

OPT-TC - tent сover over the ramp, mountable.

OPT-2SL - safety legs adjustable in height, increase safety.

OPT-HR - additional protective hand railings, mountable.

OPT-CLR - different color.

You can see more photos in the gallery

FAQ

1. What is a container ramp?

A mobile loading ramp for containers is a specialised loading ramp for the safe loading and unloading of 20- and 40-foot containers using a forklift without building a fixed loading dock.

Main features of the mobile ramp for containers:

an enlarged horizontal platform with a length of 1000-4000 mm;
the absence of lower supports;
the ability to work with containers located in the centre of a container truck or long platform;
safe entry of the forklift directly into the container.

The main feature of such a loading ramp is the extended horizontal platform and the absence of lower supports, which allows docking with containers located on a container chassis or semi-trailer, including at a considerable distance from its rear edge.

2. How to choose the right loading ramp for containers?

The choice of a loading ramp directly depends on the location of the container on the vehicle.

If the container is located closer to the edge of the platform, a standard mobile loading ramp is sufficient in most cases. Such models are more versatile, are available with a load capacity of 6, 8, 10, and 12 tons, and are a more economical solution.

If the container is located further from the edge of the semi-trailer or in the centre of a long container chassis, a special loading ramp for containers with an extended horizontal platform and without lower supports is used.

If you are not sure which structure will suit your company, AUSBAU specialists will help select the optimal solution, taking into account the type of container, transport, and operating conditions.

3. What is the standard height of a container loading ramp?

For standard 20- and 40-foot containers, the dimensions of the loading ramp are selected primarily considering the height and location of the container on the container chassis or semi-trailer, as well as the characteristics of the forklift used.

AUSBAU mobile ramps for containers have:

working height – 900-1750 mm;
total length – 8500-13000 mm;
horizontal platform – 1000-4000 mm;
usable width – 2000-2820 mm.

For 20- and 40-foot containers, the selection principle is the same – the further the container entrance is located from the rear edge of the semi-trailer, the longer the horizontal part of the mobile loading ramp must be. This is especially important when the container is placed in the centre of a long container chassis.

4. What is the load capacity of a mobile ramp needed for container unloading?

When choosing the load capacity of a loading ramp for containers, the total weight of the forklift and the maximum load it carries into the container must be considered. However, relying on the load capacity of the 20- or 40-foot container itself is incorrect – the load on the loading ramp is determined by the weight of the loading equipment and the cargo it transports.

For most standard operations, ramps with a load capacity of 6-12 tons are sufficient. If heavy forklifts, large loads, or special equipment are used, a structure with a higher load capacity is required. AUSBAU mobile loading ramps for containers can be manufactured with a load capacity of up to 30 tons.

5. How to load and unload a container with a forklift?

The safety of loading and unloading a container depends on the correct installation of the mobile ramp, the securing of the vehicle, and compliance with the operating conditions of the loading equipment.

Before starting work, it is necessary to:

ensure that the mobile loading ramp is installed on a solid and level surface;
correctly adjust the working height of the ramp;
securely fix the loading ramp and the vehicle;
consider the location of the container on the vehicle during the installation and docking of the ramp;
check that the load on the ramp corresponds to the weight of the forklift with its load;
ensure that the riding surface provides sufficient wheel grip;
avoid sudden acceleration, braking, and manoeuvres while moving along the ramp.

For additional safety, AUSBAU loading ramps can be equipped with safety support legs, wheel chocks, protective hand railings, and a tent cover.

6. When is a mobile loading ramp for containers necessary?

Everything depends on the location of the container on the vehicle.

If the container is located near the edge of the platform, a standard mobile loading ramp with a load capacity of 6, 8, 10, or 12 tons is usually sufficient.

If the container is located in the centre of a container truck or long platform, a mobile ramp with a horizontal platform of 1000-4000 mm and a design without lower supports is required, which allows the forklift to safely drive into the container.

Standard AUSBAU loading ramps for containers are manufactured with a load capacity of up to 30 tons, a total length of 8500-13000 mm, a usable width of 2000-2820 mm, and a working height of 900-1750 mm.

7. What is the difference between a loading ramp for containers and a standard mobile ramp?

The loading ramp for containers is specially designed for the loading and unloading of containers located on long platforms and container trucks. Compared to a standard mobile ramp, it has the following features:

a horizontal platform with a length of 1000-4000 mm;
a design without lower supports;
safe entry of the forklift into containers located in the centre of the platform;
total length – 8500-13000 mm;
usable width – up to 2820 mm;
load capacity – up to 30 tons.
