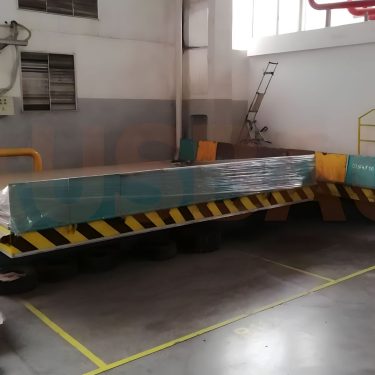

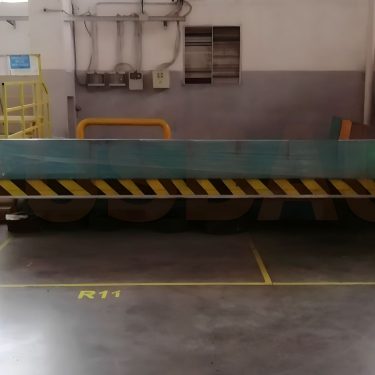

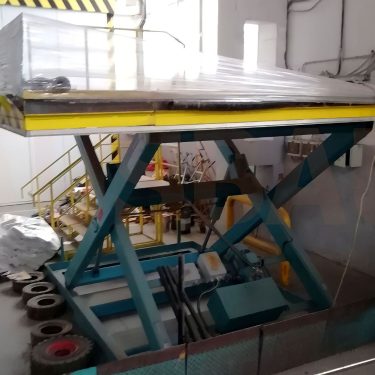

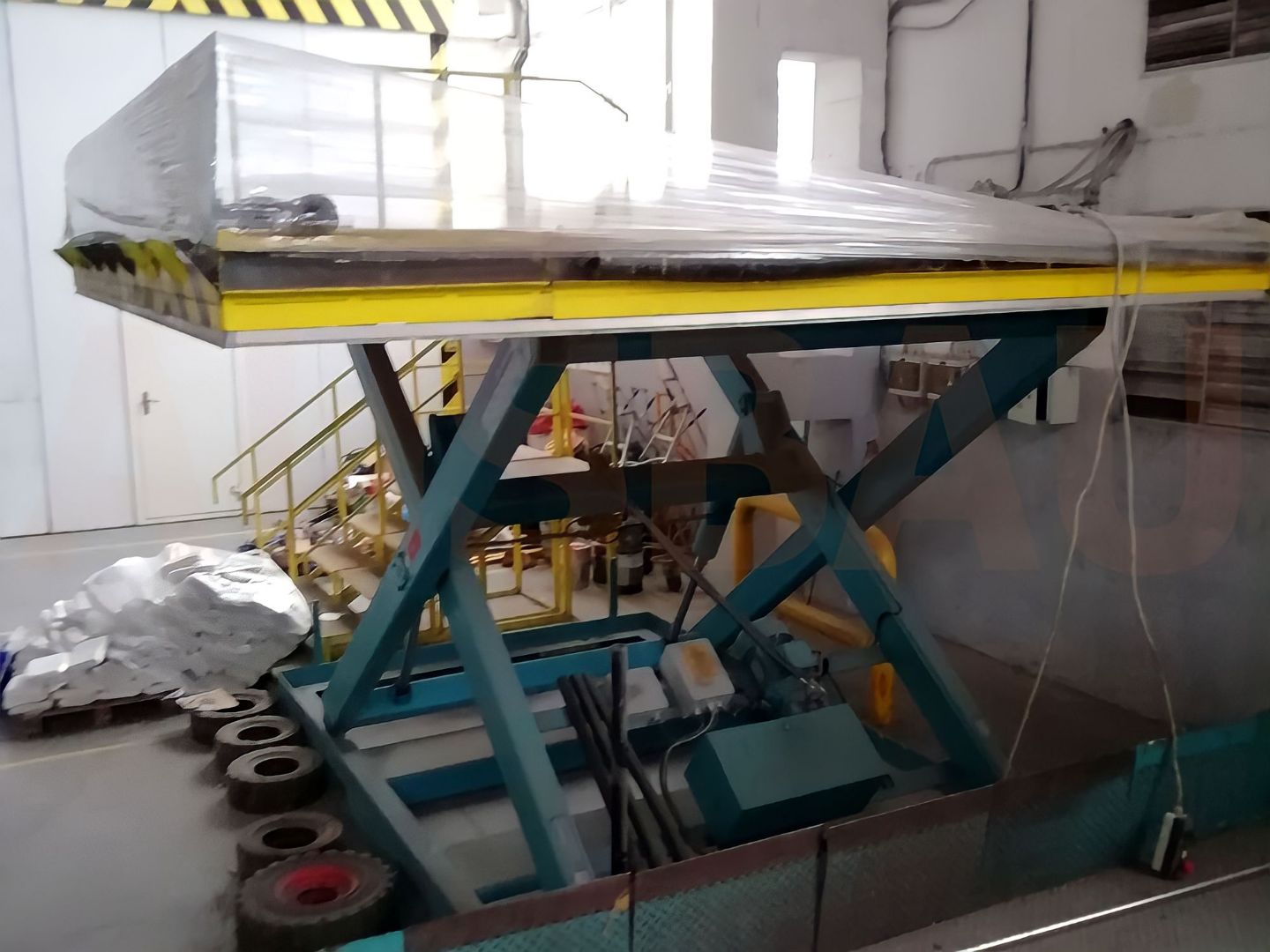

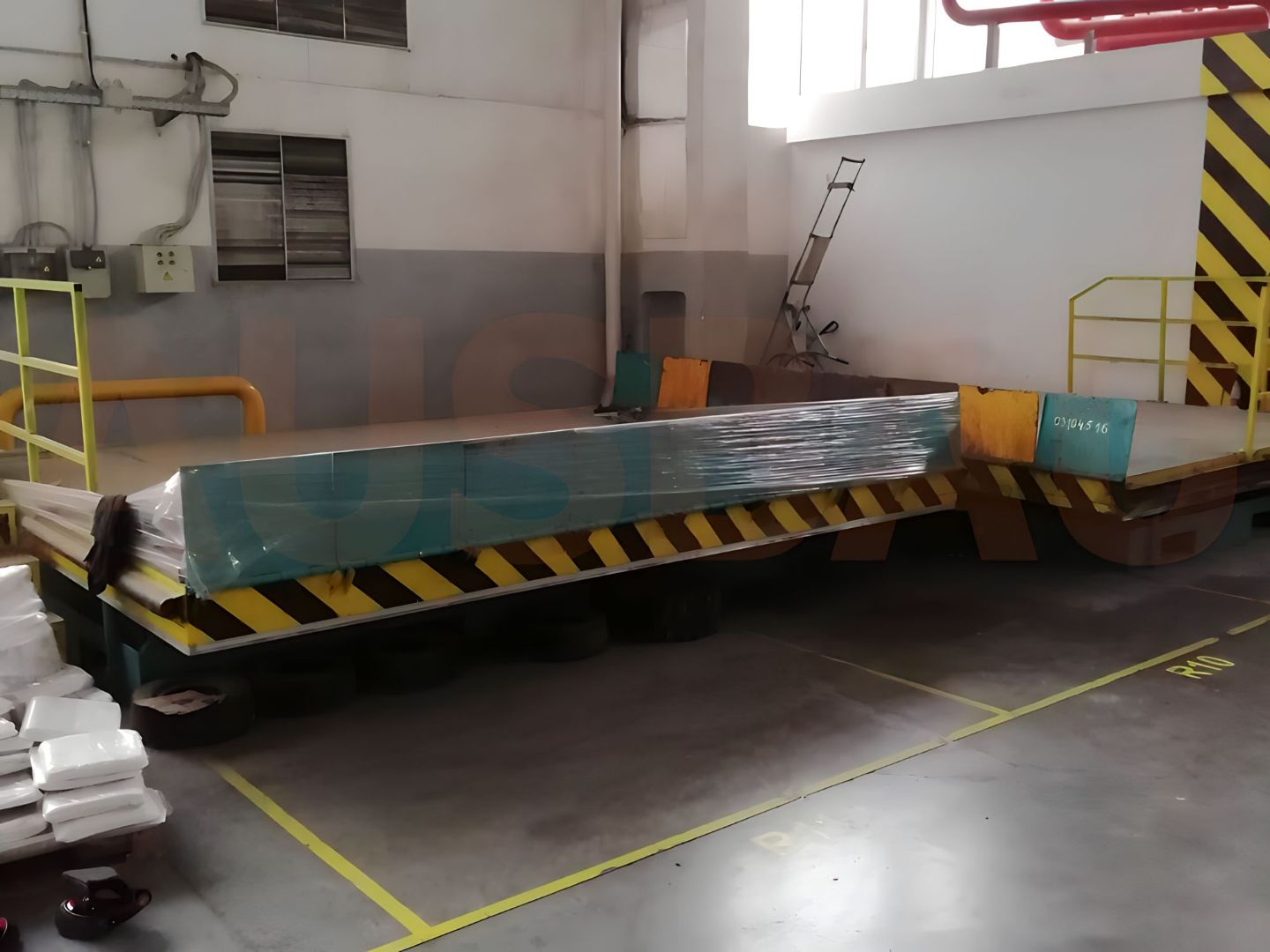

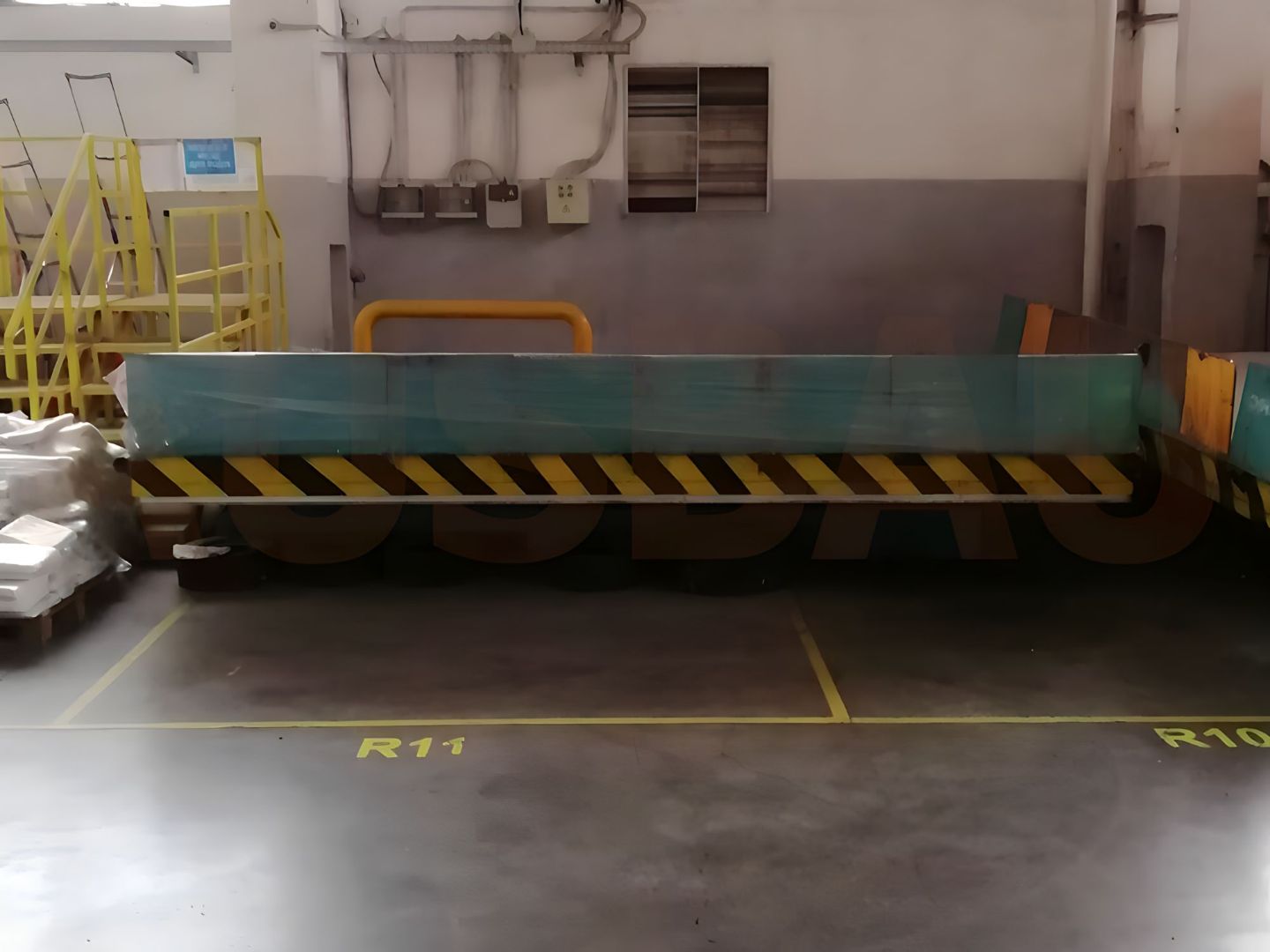

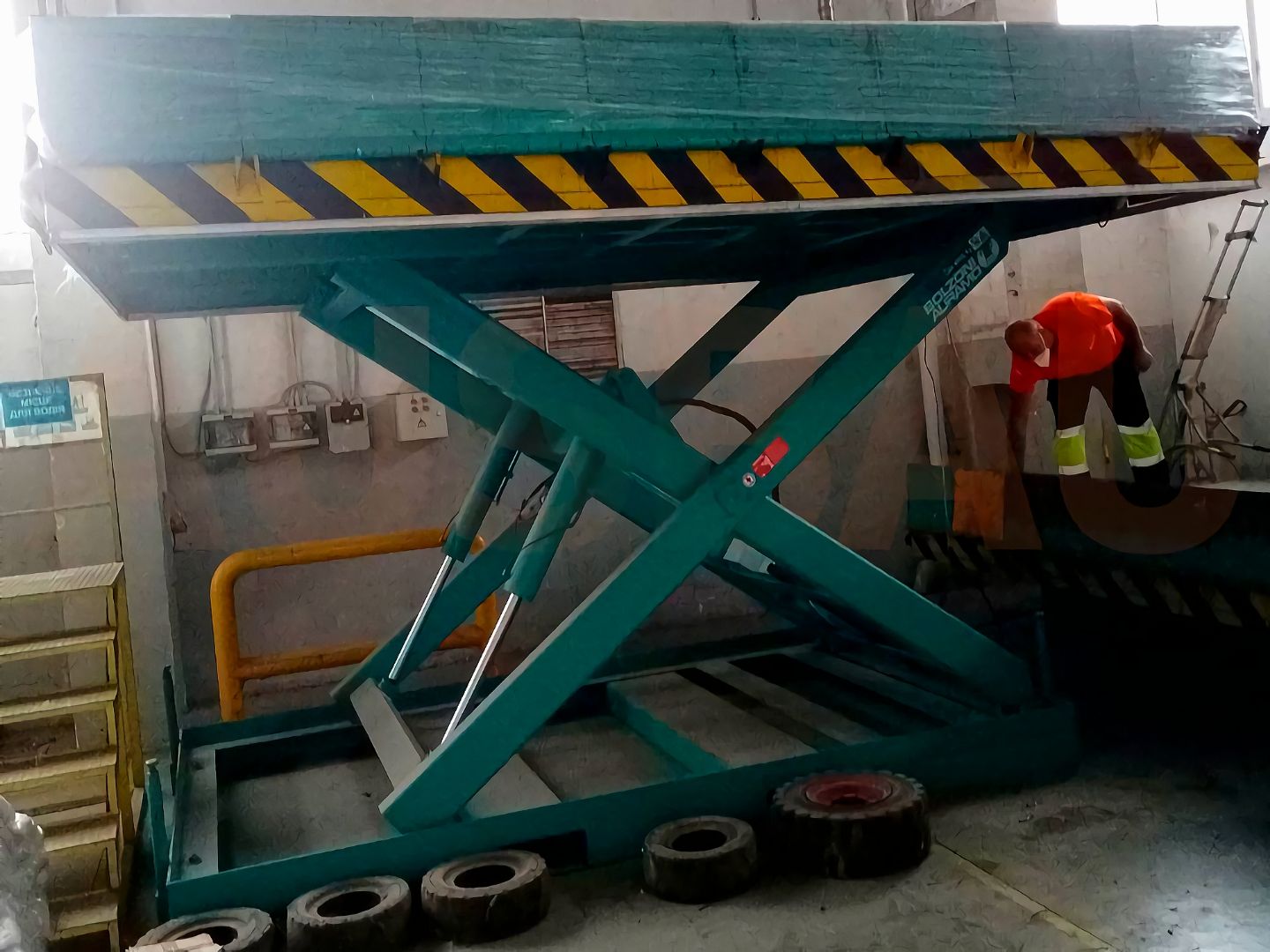

Used hydraulic scissor lift

A hydraulic scissor lift is a structure that levels the warehouse and the truck’s loading platform. The peculiarity of the scissor lift is that it lifts and lowers loads in a vertical plane.

The lifting table significantly increases the efficiency of warehouse operations, as it can be operated by one person.

TECHNICAL CHARACTERISTICS

Load capacity, kg 4000
Dimensions, mm 4000х3000
Minimum height from ground level, mm 550
Мaximum height from ground level, mm 2500
Coating Lentil sheeting
Electric motor capacity 4kWt, 1500 rpm
Height of the guardrail, mm 900
Num. of folding bridges, pcs 8
Components 2 hydraulic cylinders, rubber bumpers, emergency stop system, forklift fork pockets, 4 additional repair racks

OPERATING PRINCIPLE

A hydraulic scissor lift is used to move large goods in an upward or downward direction. To move the lift around the warehouse, forklift fork boxes are used on all sides of the platform.

On the A-side of the lifting table, there are 8 folding bridges, each measuring 500x400x5 mm.

The scissor lift is equipped with additional safety features such as a handrail on the B side, rubber bumpers and an emergency stop system that is activated in the event of foreign objects falling under the platform, preventing it from lowering completely.

The lift table also comes with 4 additional racks for repair works. The platform is raised to the required height, the uprights are installed on each edge of the platform, the platform is lowered, and the uprights bear the entire load. Thanks to this, it is possible to repair the hydraulic part.

CE Standard.

You can see more photos in the gallery
